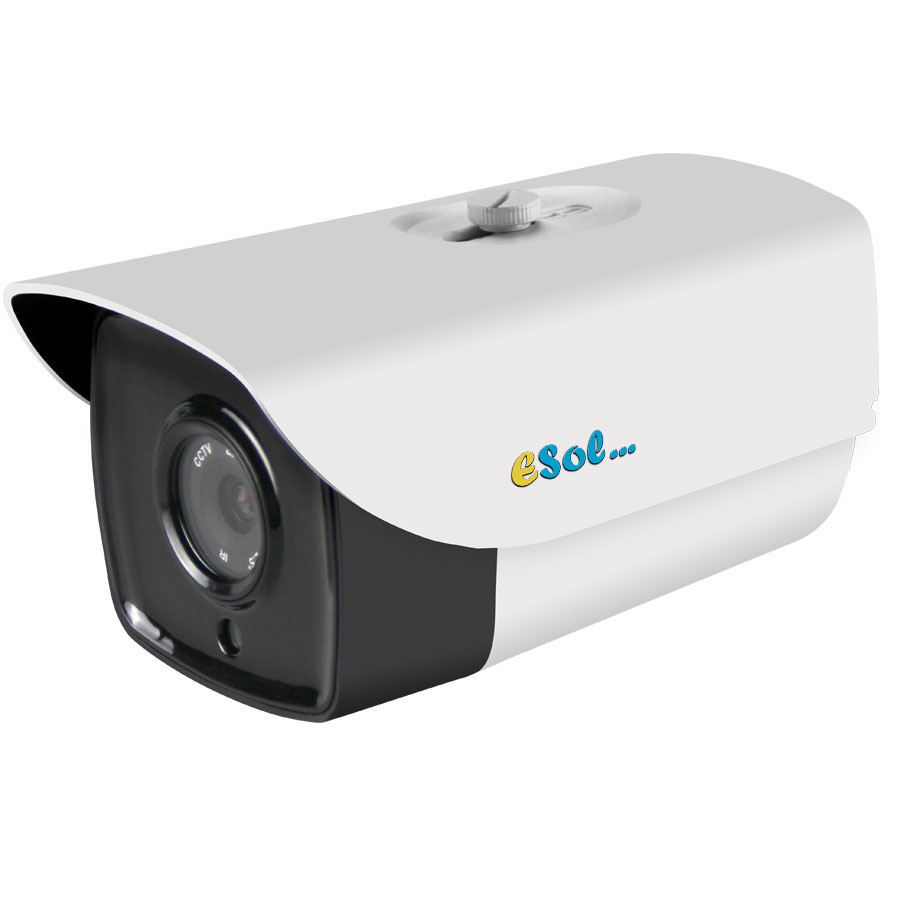

Esol ESVZ/40-5X - Camera video IP de exterior, 4 MP, Zoom Motorizat si Autofocus, IR 40m
Cod: ESVZ/40-5X
Click pe poza pentru marire
Descriere
ESVZ/40-5X - Camera video IP de exterior, 4 MP, Zoom Motorizat si Autofocus
- Senzor imagine - OV4689
- Procesor - Hi3516D
- Rezolutie efectiva - 2688(H)*1520(V)
- Lentila - varifocala 2.7‐13.5mm - Zoom motorizat
- Distanta IR - 40m 42µ x 4PCS leduri IR
- Accepta ONVIF 2.4
- Main stream - 2560*1440@20fps
- Detectie miscare
- Carcasa - protectie IP66
- Greutate 600g
- Producător: Esol
ESVZ/40-5X - Camera video IP de exterior, 4 MP, Zoom Motorizat si Autofocus
- Senzor imagine - OV4689
- Procesor - Hi3516D
- Rezolutie 4Mp
- Rezolutie efectiva - 2688(H)*1520(V)
- Compresie - H.264/H.265/JPEG/AVI/MJPEG
- Sistem TV - PAL/NTSC
- Obturator electronic - Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec
- S/N Ratio - ≥52dB
- Sistem de scanare - Progressive
- Lentila varifocala de 4Mp - 2.7-13.5mm
- Lentila motorizata cu Autofocus
- Distanta IR - 40m (42µ x 4PCS leduri IR);
- Retea - RJ-45 (10/100Base-T)
- Protocol - TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP
- Suporta - ONVIF 2.4
- Suporta P2P (QR Code)
- PoE optional - IEEE 802.3af
- Main Stream 1- 2560*1440@20fps, Main Stream 2 - 2304*1296@30fps, Main Stream 3 - 1920*1080@30fps, Sub Stream 1 - 720*480@20fps/720*480@30fps, Tri Stream - 352*288@20fps/352*288@30fps
- Aplicatie smartphone Android, iPhone
- ZI/Noapte - Color/ B&W (IR-CUT )
- Configurare imagine - Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control)
- Suporta - Corridor Pattern, Defog Mode, ROI, BLC, WDR, etc.
- Detectie de miscare
- IR Cut Filter
- Clasa de protectie IP66
- Temperatura de operare/stocare - -20℃ ~ +60℃ RH95% Max
- Alimentare - DC12V±10%,1000mA
- Dimensiuni - 162(W) x 88(H) x 86(D)mm
- Greutate - 600g
| Element de imagine: | OV4689 |
|---|---|
| Rezolutie efectiva: | 2688(H)*1520(V) |
| Sistem: | PAL/NTSC |
| Lentila: | Lentila Motorizata 2.7‐13.5mm cu AUTO Focus |
| Distanta IR: | 40m |
| Retea: | RJ-45 (10/100Base-T) |
| Compresie video: | H.264/H.265/JPEG/AVI/MJPEG |
| Onvif: | ONVIF 2.4 |
| S/N Ratio: | ≥50dB |
| Alimentare: | DC12V±10%, |
| Consum: | 1000mA |
| Dimensiuni: | 162(W) x 88(H) x 86(D)mm |
| Greutate: | 600g |
| Carcasă: | IP66 |
